The Ideal Energy Harvesting Solution for AIoT

Arc-solar Box is an enclosure-integrated energy harvester designed for LPWAN/4G LTE IoTs. It has no angle limitations, allowing it to collect scattered light in a highly-efficient manner. On a sunny day, the solar energy we provide is greater than that provided by an AAA battery.

Like Iron Man’s power source, the Arc Reactor, FLEXWAVE’s Arc-solar is a solar energy harvester of IoT devices. It has a lifespan of 10 years, which provides companies with a battery-free and more economical solution.

High-performance

By employing the well-designed max. power point tracking (MPPT)  power manager, >40% more photon energy can be transferred into electricity.

UV Resistant & Waterproof

Using durable PC materials and FLEXWAVE’s patented waveguide encapsulation, Arc-solar box is capable of protection against UV rays and is waterproof. It will not yellow after being at outside for an extended period.

10-year Lifespan

With a lifespan of up to ten years, Arc-solar box sustainably provides solar energy harvesting for uninterrupted data collection.

Battery-free

Due to the optimized design, Arc-solar box is available as a self-powered device via its rechargeable battery. No maintenance fees required.

Plug & Play

All accessories needed for solar energy harvesting are provided. Just Plug & Play!

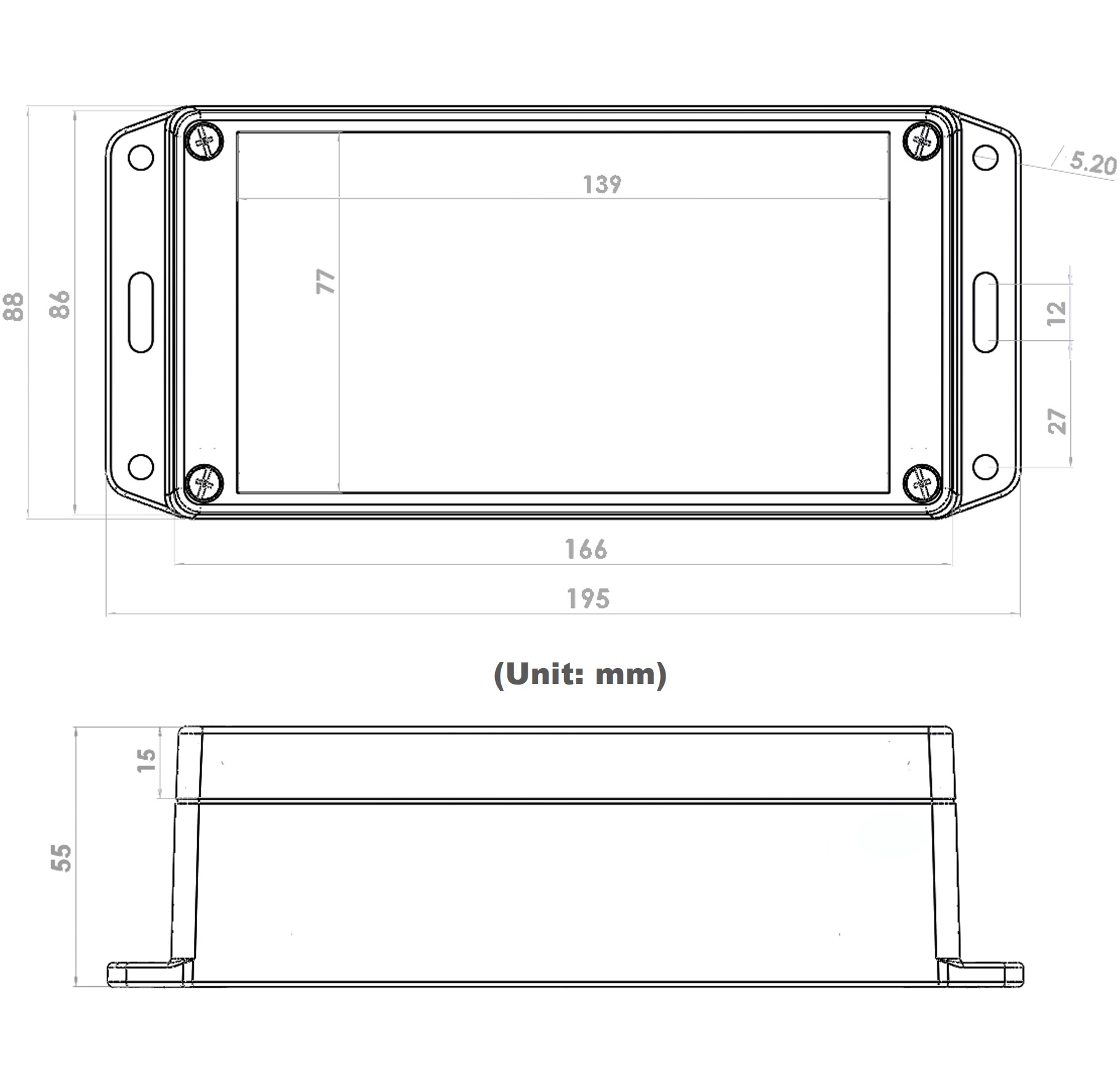

Arc-solar

Instant power(mW) 1,250
Estimated
Daily power(a)(mWh)
or(mAh@3.6V)
Sunny day(b):5,000mWh (1,350mAh)
Cloudy day(b):450mWh
Reduce CO2 per year ~35.14kg / unit
User Guide EN

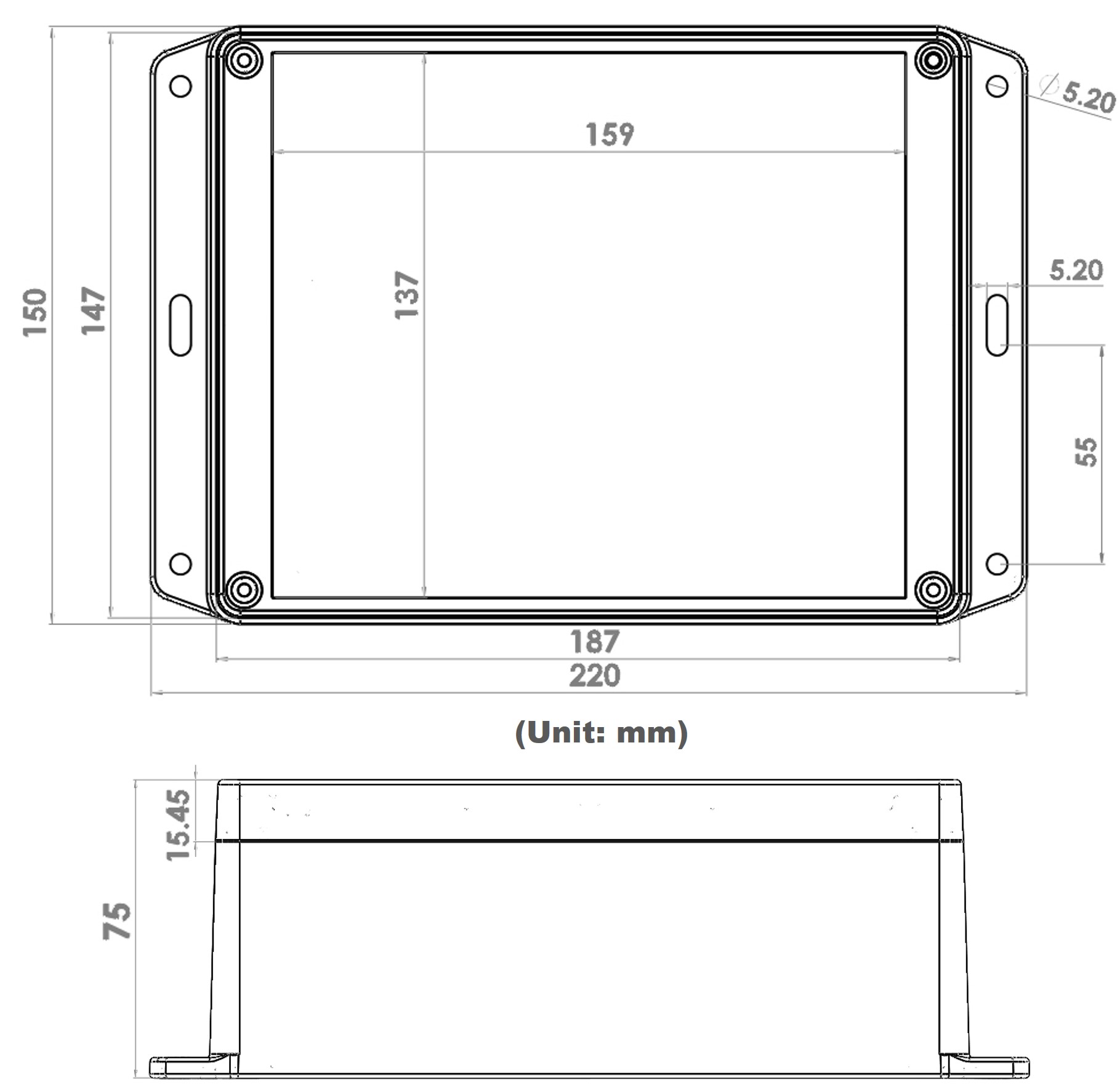

Arc-solar P

Instant power(mW) 3,050
Estimated
Daily power(a)(mWh)
or(mAh@3.6V)
Sunny day(b):10,000mWh (2,900mAh)
Cloudy day(b):980mWh
Reduce CO2 per year ~84.36kg / unit
User Guide EN
Solar cell>22% Eff. mono-Si solar cell.
Module typeWaveguide Encapsulated PV Module
Box materialPC
CertificationIP67 / RoHS / CE-EMC / Thermal Cycling.
We offerBasic set:
(1) Waterproof box with Flexwave’s solar energy harvesting.
(2) Solar charge controller(c). (solar MPPT+battery charger)
(3) One 4 pin and one 6 pin wire harness.
Optional:
(1) LPWAN system (Sigfox, Weightless, NBIoT etc.)
(2) Various environmental sensors, GPS, etc.
(3) Rechargeable battery.
(4) Bottom plate. (fixed components inside)

Note:
(a) Daily power was measured at Hsinchu, Taiwan for example.
(b) Sun intensity of a Sunny day is 1,000W/m2, a Cloudy day is around 100W/m2.
(c) The output voltage of the solar charge controller is 5.0V(Customized).
※Now you can by on DigiKeys (US)
