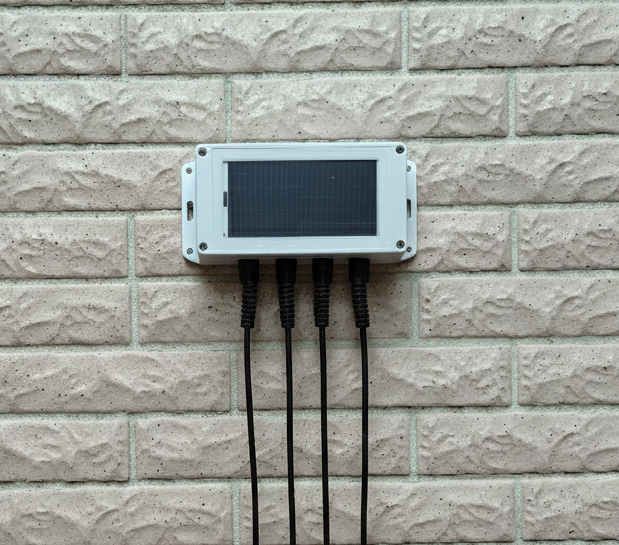

Arc-solar UPS is an extension of the Arc-solar Box, which offers a true off-grid power resource for a self-sustaining future. By harnessing ambient light through Flexwave’s waveguide technology, it eliminates grid dependency and battery maintenance. This “install-and-forget” solution ensures continuous, wireless operation for IoT sensors in even the most remote and demanding environments.
This UPS collects ambient photons and recharges itself. Seamlessly upgrade to Ambient IoT with zero effort.
User-friendly design to meet your needs. Aligned with ITU-T L.1480 standards for sustainable IoT.
Flexible multi-channel power delivery.
| Output Voltage | Standard – 5V (max. 1A)
Optional – Battery voltage (Vbat), 9V (max. 450mA), 12V (max. 300mA) |
| Built-in batteries | Maximum capacity: Arc-Solar UPS: 10×18650 Li-ion rechargeable battery pack (34,000mAh @ 3.7V) Arc-Solar UPS-P: |
| Power Manager | Embedded MPPT Charger with battery health control system. Output off @ Vbat=2.8V, and restart @ Vbat=3.4V. |
| Applications | Arc-Solar UPS: Suitable for the system with an avg. daily power consumption of 2,000~3,600 mAh/day under open sky. Arc-Solar UPS-P: |
